Marley Acme Single Camber Clay Plain Tiles

Marley Acme Single Camber Clay Plain Tiles

The Marley Acme Single Camber range combines the beautiful character of fired clay, with manufacturing precision that won’t let you down. With first-rate environmental credentials, and a range of colours and finishes, Acme Single Camber Clay Plain tiles could be the solution for your roofing project.

Accreditation to the BES 6001 Framework Standard for Responsible Sourcing means that projects using our clay tiles can get extra credits under BREEAM.

Marley Acme Single Camber offers precision manufacturing at its finest.

  • Available in eight stunning colours
  • Amazing 30° minimum pitch for greater design versatility
  • Great value, ideal for any roofing project
  • All the benefits of a strong, natural material with cutting-edge modern production techniques
  • Certified ‘Excellent’ for BES 6001
  • Available with a range of complementary fittings and accessories

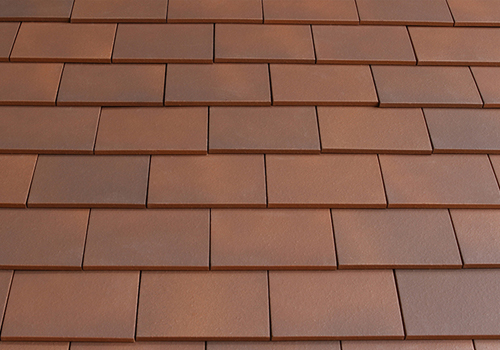

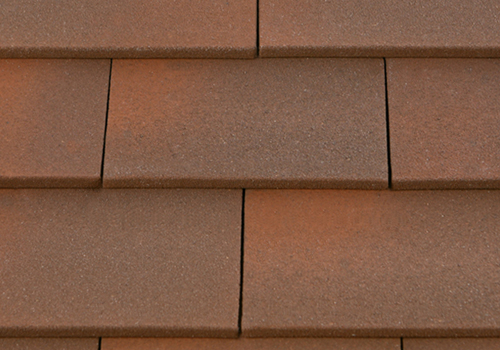

Colours Available – Heather Blend / Mixed Brindle

Please see Description below for full product details.

Marley Tiles - Roofstore

Description

The Marley Acme Single Camber range combines the beautiful character of fired clay, with manufacturing precision that won’t let you down. With first-rate environmental credentials, and a range of colours and finishes, Acme Single Camber Clay Plain tiles could be the solution for your roofing project.

Accreditation to the BES 6001 Framework Standard for Responsible Sourcing means that projects using our clay tiles can get extra credits under BREEAM.

Marley Acme Single Camber offers precision manufacturing at its finest.

  • Available in eight stunning colours
  • Amazing 30° minimum pitch for greater design versatility
  • Great value, ideal for any roofing project
  • All the benefits of a strong, natural material with cutting-edge modern production techniques
  • Certified ‘Excellent’ for BES 6001
  • Available with a range of complementary fittings and accessories

Colours Available – Heather Blend / Mixed Brindle

Additional information

Size

265mm x 165mm

Minimum Pitch

30°

Maximum Pitch

90°

Minimum Headlap

65mm (roof)
37.5mm (vertical)

Maximum Gauge

100mm (roof)
115mm (vertical)

Cover Width

165mm (nominal)

Covering Capacity

60 tiles/m² at 100mm gauge (roof)
53 tiles/m² at 115mm gauge (vertical)

Weight of Tiling

64kg/m² (0.63 kN/m²) at 100mm gauge (roof)
56g/m² (0.55 kN/m²) at 115mm gauge (vertical)

Battens Required

10.0 lin.m/m² at 100mm gauge (roof)
8.7 lin.m/m² at 115mm gauge (vertical)

Tile Nails

38mm x 2.65mm

Material

Clay

Colour

Heather Blend / Mixed Brindle
