Marley Double Roman Concrete Tiles

Marley Double Roman Concrete Tiles

The iconic and unmistakable Double Roman profile is still an ever-present across the roofs of the UK. With a range of fittings and universal accessories, these concrete interlocking tiles could be the perfect solution for your roofing project, new build or refurbishment.

The fact that the popular Roman profile has been a consistent part of the British roofscape for generations, is testament to the trust in performance and versatility that the tile has to offer.

All of Marley’s concrete interlocking tiles can achieve an ‘A+’ rating (which has the lowest environmental impact) in the Building Research Establishment’s Green Guide to Specification.

Accreditation to the BES 6001 framework standard for Responsible Sourcing means that projects using these concrete interlocking tiles and slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).

Features & Benefits:

  • A minimum pitch of 22.5°
  • A flexible easy to lay open gauge
  • High coverage – 10.1 tiles per m² at maximum gauge
  • A classic profile for meeting planning requirements
  • Suitable for use with universal tile vents
  • Available with a range of fittings and accessories

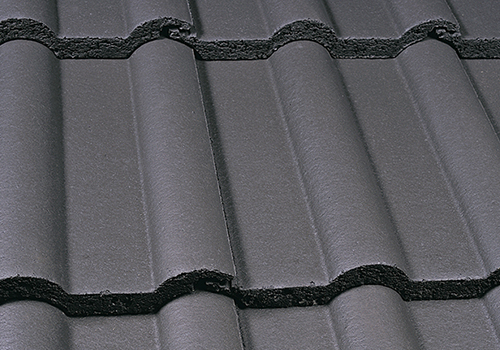

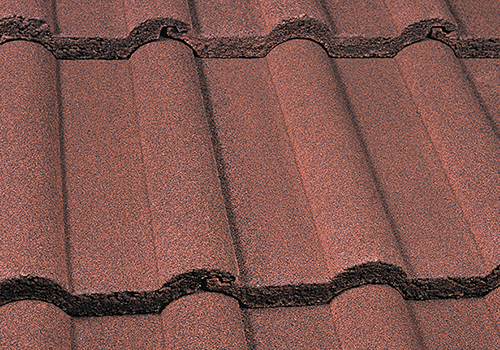

Colours Available – Dark Red / Smooth Grey

Please see Description below for full product details.

Marley Tiles - Roofstore

Description

The iconic and unmistakable Double Roman profile is still an ever-present across the roofs of the UK. With a range of fittings and universal accessories, these concrete interlocking tiles could be the perfect solution for your roofing project, new build or refurbishment.

The fact that the popular Roman profile has been a consistent part of the British roofscape for generations, is testament to the trust in performance and versatility that the tile has to offer.

All of Marley’s concrete interlocking tiles can achieve an ‘A+’ rating (which has the lowest environmental impact) in the Building Research Establishment’s Green Guide to Specification.

Accreditation to the BES 6001 framework standard for Responsible Sourcing means that projects using these concrete interlocking tiles and slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).

Features & Benefits:

  • A minimum pitch of 22.5°
  • A flexible easy to lay open gauge
  • High coverage – 10.1 tiles per m² at maximum gauge
  • A classic profile for meeting planning requirements
  • Suitable for use with universal tile vents
  • Available with a range of fittings and accessories

Colours Available – Dark Red / Smooth Grey

Additional information

Size

420mm x 330mm

Minimum Pitch

25° Smooth (75mm headlap)
30° Granular (75mm headlap)
22.5° Smooth (100mm headlap)

Maximum Pitch

90°

Minimum Headlap

75mm

Maximum Gauge

345mm

Cover Width

300mm (nominal)

Covering Capacity

9.7 tiles /m² at 75mm headlap
10.4 tiles /m² at 100mm headlap

Weight of Tiling

44kg/m² (0.43 Kn/m²) at 75mm headlap
47kg/m² (0.46 Kn/m²) at 100mm headlap

Battens Required

2.9 lin.m/m² at 75mm headlap
3.1 lin.m/m² at 100mm headlap

Tile Nails

65mm x 3.35mm

Hanging Length

397mm (nominal)

Material

Concrete

Colour

Dark Red / Smooth Grey
