Marley Hawkins Clay Plain Tiles

Marley Hawkins Clay Plain Tiles

The Hawkins single camber range offers unrivalled performance and versatility, thanks to an astounding 30° minimum pitch capability. Made using the most modern firing techniques, this high-quality and versatile clay plain tile also provides great value for money.

Accreditation to the BES 6001 Framework Standard for Responsible Sourcing means that projects using these clay tiles can get extra credits under BREEAM.

Marley Hawkins Clay Plain Tiles offer heritage, quality and versatility.

  • A heritage brand that offers market-leading performance at a great price.
  • Available in a range of five dazzling colours, they’re an ideal solution for a range of roofing projects.
  • This range includes the unique Fired Sienna weathered effect finish option.
  • Certified ‘excellent’ for BES 6001
  • A range of complementary fittings and accessories

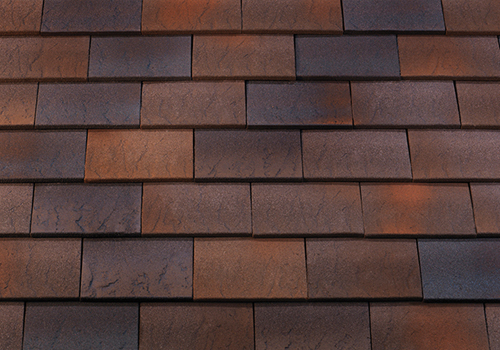

Colours Available – Fired Sienna

Please see Description below for full product details.

Marley Tiles - Roofstore

Description

The Hawkins single camber range offers unrivalled performance and versatility, thanks to an astounding 30° minimum pitch capability. Made using the most modern firing techniques, this high-quality and versatile clay plain tile also provides great value for money.

Accreditation to the BES 6001 Framework Standard for Responsible Sourcing means that projects using these clay tiles can get extra credits under BREEAM.

Marley Hawkins Clay Plain Tiles offer heritage, quality and versatility.

  • A heritage brand that offers market-leading performance at a great price.
  • Available in a range of five dazzling colours, they’re an ideal solution for a range of roofing projects.
  • This range includes the unique Fired Sienna weathered effect finish option.
  • Certified ‘excellent’ for BES 6001
  • A range of complementary fittings and accessories

Colours Available – Fired Sienna

Additional information

Size

265mm x 165mm

Minimum Pitch

30°

Maximum Pitch

90°

Minimum Headlap

65mm (roof)
37.5mm (vertical)

Maximum Gauge

100mm (roof)
115mm (vertical)

Cover Width

165mm (nominal)

Covering Capacity

60 tiles/m² at 100mm gauge (roof)
53 tiles/m² at 115mm gauge (vertical)

Weight of Tiling

64kg/m² (0.63 kN/m²) at 100mm gauge (roof)
56g/m² (0.55 kN/m²) at 115mm gauge (vertical)

Battens Required

10.0 lin.m/m² at 100mm gauge (roof)
8.7 lin.m/m² at 115mm gauge (vertical)

Tile Nails

38mm x 2.65mm

Material

Clay

Colour

Fired Sienna
