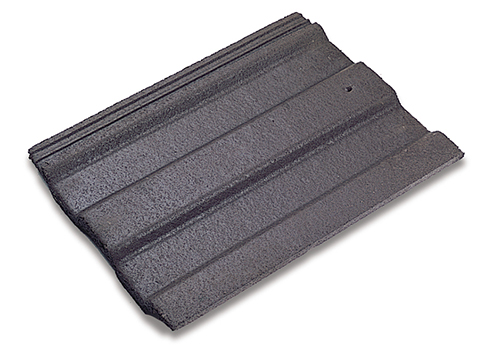

Marley Ludlow Major Concrete Tiles

Marley Ludlow Major Concrete Tiles

The popular Ludlow Major profile can achieve an A+ rating in the BRE Green Guide to Specification. In addition, compliance with the BES 6001 framework standard for Responsible Sourcing means that projects using Ludlow Major tiles can achieve extra credits under the BREEAM family of environmental assessment schemes.

Ludlow Major is available for both smooth and granular finishes, with a diverse colour range that allows its specification for a vast array of environments and roofing developments.

Features & Benefits:

  • Popular profile seen across a range of developments
  • Manufactured using roughly 50% recycled materials
  • Can achieve an A+ rating in the BRE Green Guide to Specification
  • Certified Excellent for BES 6001
  • Part of Marley’s sustainable building solutions

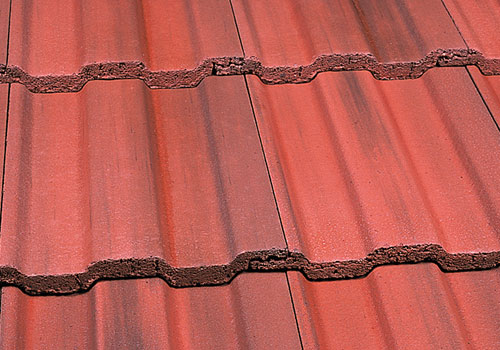

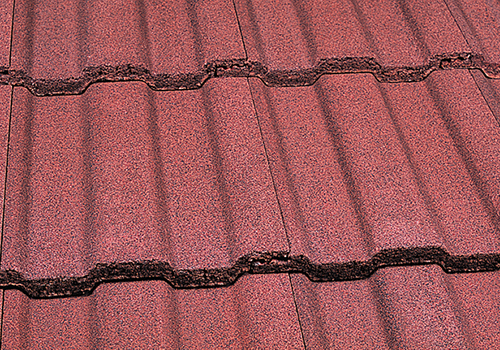

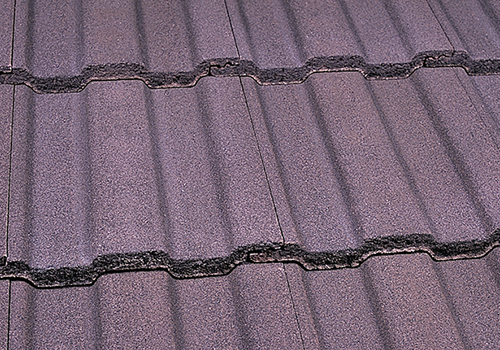

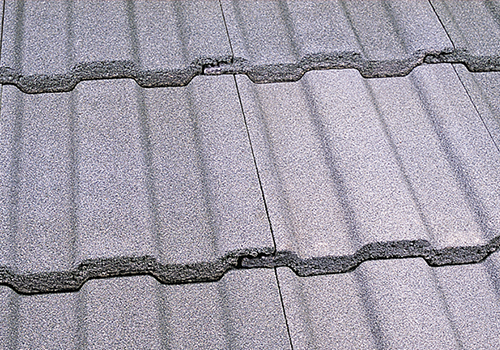

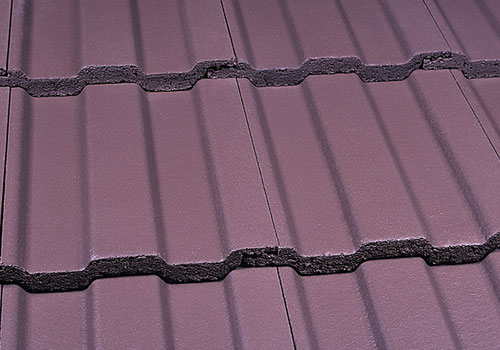

Colours Available – Antique Brown / Dark Red / Greystone / Old English Dark Red / Smooth Brown / Smooth Grey

Please see Description below for full product details.

Marley Tiles - Roofstore

Description

The popular Ludlow Major profile can achieve an A+ rating in the BRE Green Guide to Specification. In addition, compliance with the BES 6001 framework standard for Responsible Sourcing means that projects using Ludlow Major tiles can achieve extra credits under the BREEAM family of environmental assessment schemes.

Ludlow Major is available for both smooth and granular finishes, with a diverse colour range that allows its specification for a vast array of environments and roofing developments.

Features & Benefits:

  • Popular profile seen across a range of developments
  • Manufactured using roughly 50% recycled materials
  • Can achieve an A+ rating in the BRE Green Guide to Specification
  • Certified Excellent for BES 6001
  • Part of Marley’s sustainable building solutions

Colours Available – Antique Brown / Dark Red / Greystone / Old English Dark Red / Smooth Brown / Smooth Grey

Additional information

Size

420mm x 330mm

Minimum Pitch

25° Smooth (75mm headlap)
22.5° Smooth (100mm headlap)
30° Granular (75mm headlap)

Maximum Pitch

90°

Minimum Headlap

75mm

Maximum Gauge

345mm

Cover Width

295mm (nominal)

Covering Capacity

9.8 tiles /m² at 75mm headlap
10.6 tiles /m² at 100mm headlap

Weight of Tiling

45kg/m² (0.44 Kn/m²) at 75mm headlap
47kg/m² (0.48 Kn/m²) at 75mm headlap

Battens Required

2.9 lin.m/m² at 75mm headlap
3.1 lin.m/m² at 100mm headlap

Tile Nails

55mm x 3.35mm

Hanging Length

399mm (nominal)

Material

Concrete

Colour

Antique Brown / Dark Red / Greystone / Old English Dark Red / Smooth Brown / Smooth Grey
