Marley Ludlow Plus Concrete Tiles

Marley Ludlow Plus Concrete Tiles

The Ludlow Plus is a timeless and functional design that is ideally suited to refurbishment applications, where its size reduces wastage as well as being easier to handle on site.

All of Marley’s concrete interlocking tiles can achieve an ‘A+’ rating (which has the lowest environmental impact) in the Building Research Establishment’s Green Guide to Specification.

Accreditation to the BES 6001 framework standard for Responsible Sourcing means that projects using these concrete interlocking slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).

Features & Benefits:

  • Functional design
  • Small size reduces wastage 387 x 229mm
  • Can achieve an A+ rating in the BRE Green Guide to Specification
  • Certified “Excellent” for BES 6001
  • Various colours

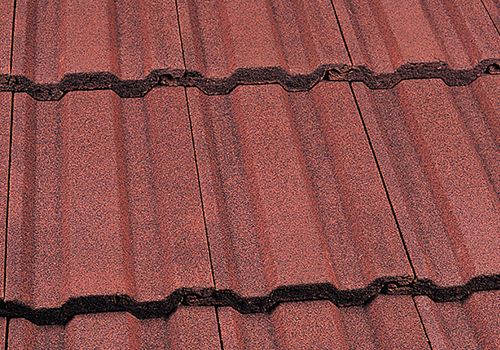

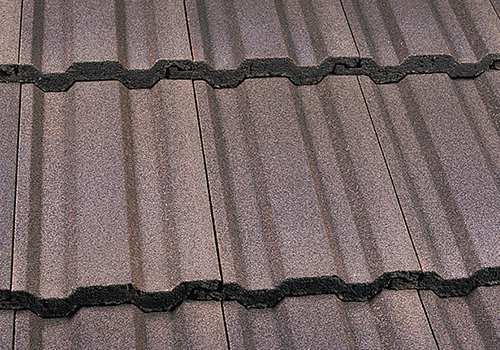

Colours Available – Antique Brown / Dark Red

Please see Description below for full product details.

Marley Tiles - Roofstore

Description

The Ludlow Plus is a timeless and functional design that is ideally suited to refurbishment applications, where its size reduces wastage as well as being easier to handle on site.

All of Marley’s concrete interlocking tiles can achieve an ‘A+’ rating (which has the lowest environmental impact) in the Building Research Establishment’s Green Guide to Specification.

Accreditation to the BES 6001 framework standard for Responsible Sourcing means that projects using these concrete interlocking slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).

Features & Benefits:

  • Functional design
  • Small size reduces wastage 387 x 229mm
  • Can achieve an A+ rating in the BRE Green Guide to Specification
  • Certified “Excellent” for BES 6001
  • Various colours

Colours Available – Antique Brown / Dark Red

Additional information

Size

387mm x 230mm

Minimum Pitch

25° Smooth (75mm headlap)
30° Granular (75mm headlap)
22.5° Smooth (100mm headlap)

Maximum Pitch

90°

Minimum Headlap

75mm

Maximum Gauge

312mm

Cover Width

204mm

Covering Capacity

15.7 tiles /m² at 75mm headlap
17.1 tiles /m² at 100mm headlap

Weight of Tiling

47kg/m² (0.46 Kn/m²) at 75mm headlap
51kg/m² (0.50 Kn/m²) at 100mm headlap

Battens Required

3.2 lin.m/m² at 75mm headlap
3.5 lin.m/m² at 100mm headlap

Tile Nails

50mm x 3.35mm

Hanging Length

361mm (nominal)

Material

Concrete

Colour

Antique Brown / Dark Red
