Marley Mendip Concrete Tiles

Marley Mendip Concrete Tiles

The Marley Mendip is an ideal concrete roof tile for low pitch extensions, new builds and home renovations. With visual appeal and exceptional strength, the Marley Mendip tiles offer elegant flowing lines and instant visual appeal, with the new Mendip 12.5 performing at pitches as low as 12.5°.

All of Marley’s concrete interlocking tiles can achieve an ‘A+’ rating (which has the lowest environmental impact) in the Building Research Establishment’s Green Guide to Specification.

Accreditation to the BES 6001 framework standard for Responsible Sourcing means that projects using these concrete interlocking slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).

Features & Benefits:

  • Low-pitch solution
  • Great covering capacity
  • Can achieve an A+ rating in the BRE Green Guide to Specification
  • Certified ‘Excellent’ for BES 6001
  • Wide range of colours available

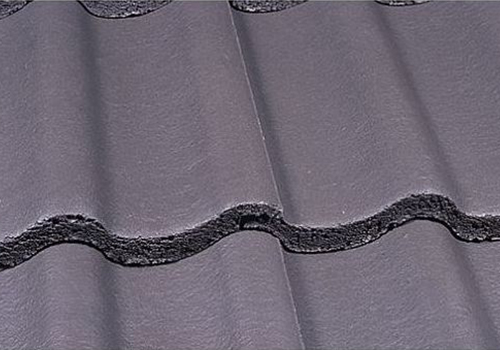

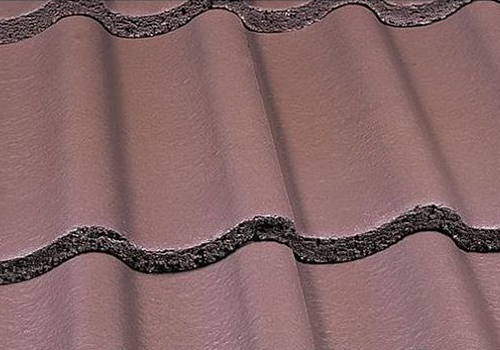

Colours Available – Smooth Brown / Smooth Grey

Please see Description below for full product details.

Marley Tiles - Roofstore

Description

The Marley Mendip is an ideal concrete roof tile for low pitch extensions, new builds and home renovations. With visual appeal and exceptional strength, the Marley Mendip tiles offer elegant flowing lines and instant visual appeal, with the new Mendip 12.5 performing at pitches as low as 12.5°.

All of Marley’s concrete interlocking tiles can achieve an ‘A+’ rating (which has the lowest environmental impact) in the Building Research Establishment’s Green Guide to Specification.

Accreditation to the BES 6001 framework standard for Responsible Sourcing means that projects using these concrete interlocking slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).

Features & Benefits:

  • Low-pitch solution
  • Great covering capacity
  • Can achieve an A+ rating in the BRE Green Guide to Specification
  • Certified ‘Excellent’ for BES 6001
  • Wide range of colours available

Colours Available – Smooth Brown / Smooth Grey

Additional information

Size

420mm x 330mm

Minimum Pitch

17.5° Smooth (75mm headlap)
15° Smooth (100mm headlap)
30° Granular (75mm headlap)
25° Granular (100mm headlap)

Maximum Pitch

90°

Minimum Headlap

75mm

Maximum Gauge

345mm

Cover Width

298mm (nominal)

Covering Capacity

9.7 tiles /m² at 75mm headlap
10.5 tiles /m² at 100mm headlap

Weight of Tiling

46kg/m² (0.45 Kn/m²) at 75mm headlap
49kg/m² (0.48 Kn/m²) at 100mm headlap

Battens Required

2.9 lin.m/m² at 75mm headlap
3.1 lin.m/m² at 100mm headlap

Material

Concrete

Colour

Smooth Brown / Smooth Grey
