Marley Modern Concrete Tiles

Marley Modern Concrete Tiles

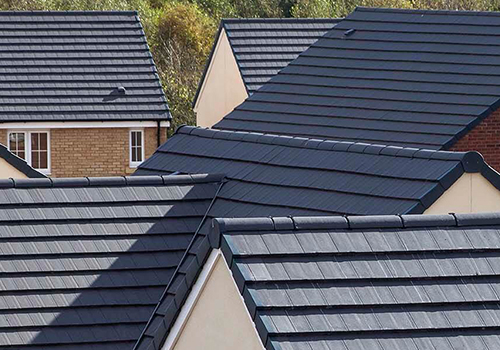

Tried, tested and trusted, the Marley Modern has become a staple product for roofers over many years. This sleek, modern interlocking tile has a flat, smooth, single-lap interlocking design with a slate-like appearance enhanced by a broken bond laying pattern.

All of Marley’s concrete interlocking tiles can achieve an ‘A+’ rating (which has the lowest environmental impact) in the Building Research Establishment’s Green Guide to Specification.

Accreditation to the BES 6001 framework standard for Responsible Sourcing means that projects using these concrete interlocking slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).

Features & Benefits:

  • Excellent covering capacity
  • Can achieve an A+ rating in the BRE Green Guide to Specification
  • Certified excellent for BES 6001
  • Interested in an affordable upgrade? Click here for more information

Colours Available – Anthracite / Smooth Grey

Please see Description below for full product details.

Marley Tiles - Roofstore

Description

Tried, tested and trusted, the Marley Modern has become a staple product for roofers over many years. This sleek, modern interlocking tile has a flat, smooth, single-lap interlocking design with a slate-like appearance enhanced by a broken bond laying pattern.

All of Marley’s concrete interlocking tiles can achieve an ‘A+’ rating (which has the lowest environmental impact) in the Building Research Establishment’s Green Guide to Specification.

Accreditation to the BES 6001 framework standard for Responsible Sourcing means that projects using these concrete interlocking slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).

Features & Benefits:

  • Excellent covering capacity
  • Can achieve an A+ rating in the BRE Green Guide to Specification
  • Certified excellent for BES 6001

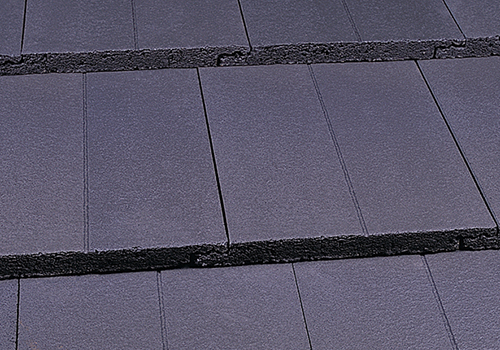

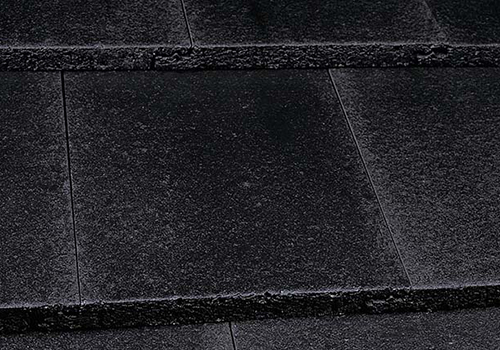

Colours Available – Anthracite / Smooth Grey

Additional information

Size

420mm x 330mm

Minimum Pitch

22.5° Smooth (75mm headlap)
17.5° Smooth (100mm headlap)
30° Granular (75mm headlap)
25° Granular (100mm headlap)

Maximum Pitch

90°

Minimum Headlap

75mm

Maximum Gauge

345mm

Cover Width

292mm (nominal)

Covering Capacity

9.9 tiles /m² at 75mm headlap
10.7 tiles /m² at 100mm headlap

Weight of Tiling

50kg/m² (0.49 Kn/m²) at 75mm headlap
54kg/m² (0.53 Kn/m²) at 100mm headlap

Battens Required

2.9 lin.m/m² at 75mm headlap
3.1 lin.m/m² at 100mm headlap

Tile Nails

50mm x 3.35mm

Hanging Length

397mm (nominal)

Material

Concrete

Colour

Anthracite / Smooth Grey
