Marley Plain Concrete Tiles

Marley Plain Concrete Tiles

A cross-cambered concrete plain tile with a traditional design, offering an economical alternative to a clay plain tile. The traditional, authentic design of the Marley Plain Concrete Tile will give your project an outstanding look at a fraction of the cost of clay plain tiles. It is highly versatile and ideal for detailing on classic roof designs, such as dormer and eyebrow windows as well as vertical hanging.

All of Marley’s concrete interlocking tiles can achieve an ‘A+’ rating (which has the lowest environmental impact) in the Building Research Establishment’s Green Guide to Specification.

Accreditation to the BES 6001 framework standard for Responsible Sourcing means that projects using these concrete interlocking slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).

Features & Benefits:

  • Traditional design
  • Economical alternative to clay plain tile
  • Highly versatile

Colours Available – Antique Brown / Dark Red / Smooth Grey

Please see Description below for full product details.

Marley Tiles - Roofstore

Description

A cross-cambered concrete plain tile with a traditional design, offering an economical alternative to a clay plain tile. The traditional, authentic design of the Marley Plain Concrete Tile will give your project an outstanding look at a fraction of the cost of clay plain tiles. It is highly versatile and ideal for detailing on classic roof designs, such as dormer and eyebrow windows as well as vertical hanging.

All of Marley’s concrete interlocking tiles can achieve an ‘A+’ rating (which has the lowest environmental impact) in the Building Research Establishment’s Green Guide to Specification.

Accreditation to the BES 6001 framework standard for Responsible Sourcing means that projects using these concrete interlocking slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).

Features & Benefits:

  • Traditional design
  • Economical alternative to clay plain tile
  • Highly versatile

Colours Available – Antique Brown / Dark Red / Smooth Grey

Additional information

Size

267mm x 165mm

Minimum Pitch

35°

Maximum Pitch

90°

Minimum Headlap

65mm (roof)
37.5mm (vertical)

Maximum Gauge

100mm (roof)
115mm (vertical)

Cover Width

168mm

Covering Capacity

60 tiles/m² at 100mm gauge (roof)
53 tiles/m² at 115mm gauge (vertical)

Weight of Tiling

73.8kg/m² (0.72 kN/m²) at 100mm gauge (roof)
58kg/m² (0.57 kN/m²) at 115mm gauge (vertical)

Battens Required

10.0 lin.m/m² at 100mm gauge (roof)
8.7 lin.m/m² at 115mm gauge (vertical)

Tile Nails

38mm x 2.65mm

Hanging Length

246mm (nominal)

Material

Concrete

Colour

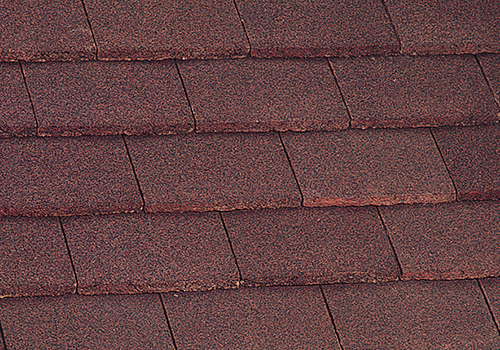

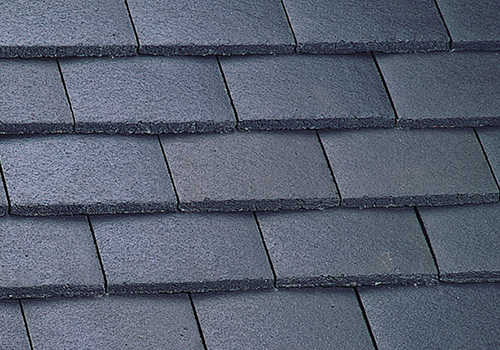

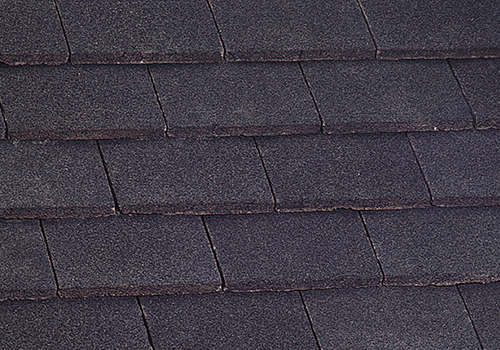

Antique Brown / Dark Red / Smooth Grey
