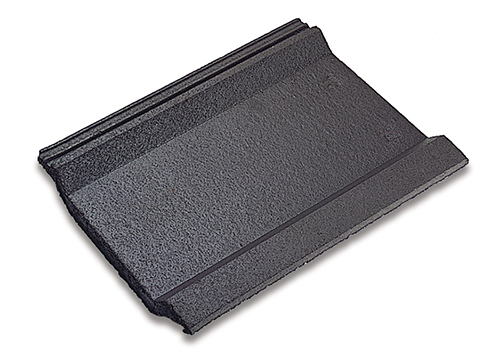

Marley Wessex Concrete Tiles

Marley Wessex Concrete Tiles

The low profile Wessex is at the forefront of low pitch performance. Designed to shed water efficiently at pitches down to 15°, the Wessex interlocking tile has clean, simple lines and a pleasing minimalist style.

All of Marley’s concrete interlocking tiles can achieve an ‘A+’ rating (which has the lowest environmental impact) in the Building Research Establishment’s Green Guide to Specification.

Accreditation to the BES 6001 framework standard for Responsible Sourcing means that projects using these concrete interlocking slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).

Features & Benefits:

  • 15o low-pitch solution
  • Designed to shed water efficiently
  • Can achieve an A+ rating in the BRE Green Guide to Specification
  • Certified ‘Excellent’ for BES 6001

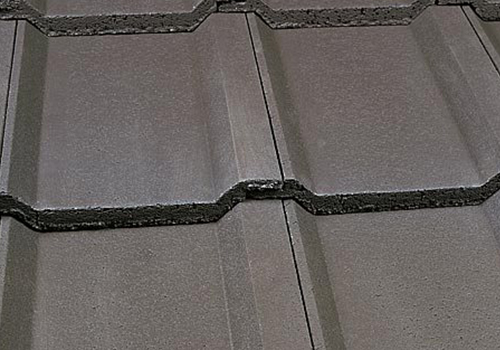

Colours Available – Smooth Grey

Please see Description below for full product details.

Marley Tiles - Roofstore

Description

The low profile Wessex is at the forefront of low pitch performance. Designed to shed water efficiently at pitches down to 15°, the Wessex interlocking tile has clean, simple lines and a pleasing minimalist style.

All of Marley’s concrete interlocking tiles can achieve an ‘A+’ rating (which has the lowest environmental impact) in the Building Research Establishment’s Green Guide to Specification.

Accreditation to the BES 6001 framework standard for Responsible Sourcing means that projects using these concrete interlocking slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).

Features & Benefits:

  • 15o low-pitch solution
  • Designed to shed water efficiently
  • Can achieve an A+ rating in the BRE Green Guide to Specification
  • Certified ‘Excellent’ for BES 6001

Colours Available – Smooth Grey

Additional information

Size

420mm x 330mm

Minimum Pitch

15°

Maximum Pitch

44°

Minimum Headlap

75mm

Maximum Gauge

345mm

Cover Width

298mm (nominal)

Covering Capacity

9.7 tiles/m² at 75mm headlamp
10.4 tiles/m² at 100mm headlamp

Weight of Tiling

50kg/m² (0.49 kN/m²) at 75mm headlamp
53kg/m² (0.52 kN/m²) at 100mm headlamp

Battens Required

2.9 lin.m/m² at 75mm headlamp
3.1 lin.m/m² at 100mm headlamp

Hanging Length

403mm

Material

Concrete

Colour

Smooth Grey
